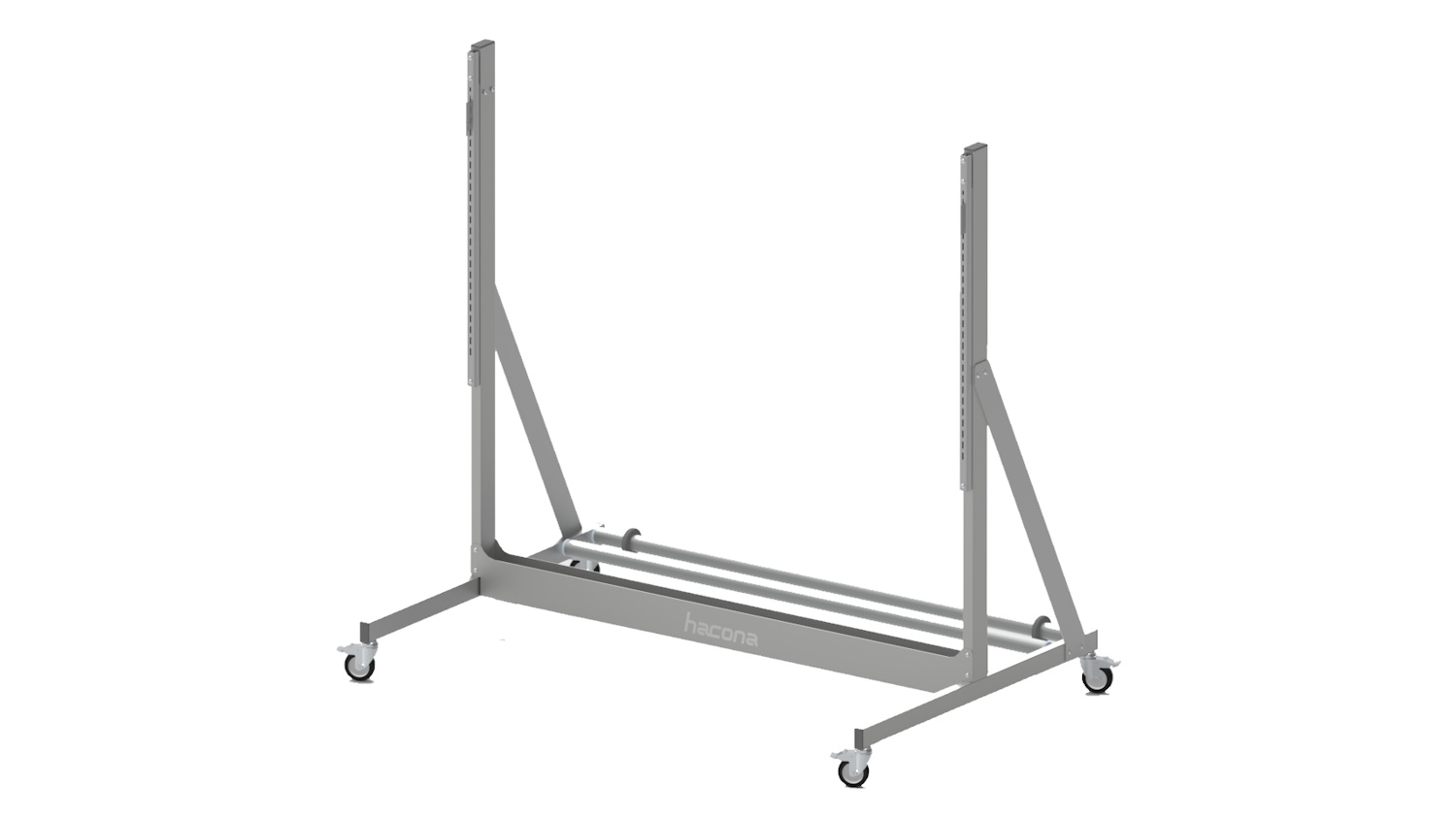

High mobile stand with film holder (rolloflux) for E-1320 machine
A perfect solution to work with the machine in industrial environment. The E-1320 high mobile stand offers the best attachment for working with the modular mobile roller conveyor and the E-1320 machine.
The support is made out of stainless steel. This support is used for E-type (surface finish: orange – powder painted) and EI-type (surface finish: silver anodized) machines as well.
Tubular film can be placed onto the rolloflux. This way it is possible to produce bags from rolls. The same time the machine can be used also to work with premade bags.
Technical parameters:
Packaging dimensions: 2pcs x (1480 x 325 x 120) [mm] (width x depth x height)
2pcs 58.2 x 12.8 x 4.7 [inch] (width x depth x height)
Packed product weight: 33 [kg] / 72.75 [lb] – gross weight
Build up size: 1450 x 960 x 1420 [mm] (width x depth x height)
57 x 37.8 x 55.9 [inch] (width x depth x height)
Weight: 32 [kg] / 70.5 [lb]
Material of frame: Stainless steel – DIN1.4301
Material of film holding rolls: Aluminium anodized - silver
Film holding rolls:
Max. load of rolls: 25 [kg] / 55,12 [lb]
Max. roll width: 1300 [mm] / 51,1 [inch]
Max. film diameter: 400 [mm] / 15,7 [inch]
Min. roll diameter: 120 [mm] / 4,7 [inch]
One of the rolloflux has 2 pcs. rubber guiding rings. These can be moved on the aluminium roll. These rubber guiding rings should be placed right and left side of the film roll to prevent it from moving sideways. The distance between filmroll and rubber guiding rings should be app. 12 mm / 0,5 inch. Optional rolls can be ordered for the support.
